JANGWON TECH’s Technology

A global company specializing in the Die-casting industry creates the future.

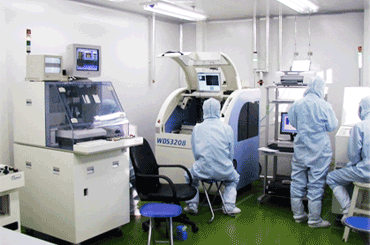

Jangwon Tech Research Center for Production Technology is certified as a company-affiliated research institute by Korea Industrial Technology Association, and it has been carrying out research and development in mobile phones and patented technologies.
The research center has four professional teams specialized in innovative technologies, product development, surface treatment, and design, and the results from the research are applied to the related departments and production.
Jangwon Tech Research Center for Production Technology is certified as a company-affiliated research institute by Korea Industrial Technology Association, and it has been carrying out research and development in mobile phones and patented technologies.
The research center has four professional teams specialized in innovative technologies, product development, surface treatment, and design, and the results from the research are applied to the related departments and production.



Die-casting Technologies

  • THIXO TYPE
  • BAR APPLICATION TYPE
  • COLD CHAMBER TYPE

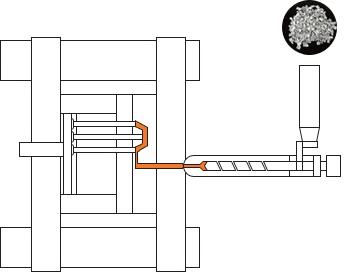

THIXO TYPE

It is a method of producing alloy products by injecting plastics by lowering the viscosity of magnesium alloy with applying pressure to semi-molten magnesium alloy. The excellent dimensional stability allows for production of high-quality products, and the equipment is suitable for magnesium-plated products.

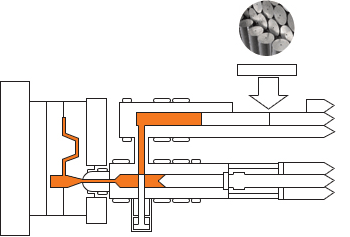

BAR APPLICATION TYPE

This is similar to the cold-chamber die-casting machine; it also has melting cylinders on the top and injection cylinders parallel to each other at the bottom. The substance is dissolved in the melting cylinders first and then transferred into the injection cylinders; and the production of the materials is completed through the molding and injection processes. The continual supply of the bars instead of magnesium chips is different from the Thixo-type machine. The high density of the molding enables thin-plate molding (0.3 mm) and facilitates molding of complex shapes.

COLD CHAMBER TYPE

Separating molten metal from the injection mold part increases the pressure of the casting; fine and even texture is required. This is mainly used to produce medium- to large-size thick components.



Press

This is a representative method of metal processing that creates various shapes by putting compressive force on the metal board to deform the plastics; the method has been used for automotive chassis, precision camera parts, and watches



Molding technology

Four-cavity ultra-precision die-casting molds are produced in a short period of time with precise processing equipment and CAD/CAM/CAE systems.

  • Technology for 3D mold designs
  • 3D simulation
  • Analysis of 3D molding.
  • 4-Cavity molds

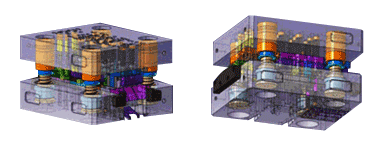

Technology for 3D mold designs

Simulation of bubble aggregation

Temperature distribution of capacity

3D simulation

Analysis of melting, solidification

Analysis of filling

shrinkage Analysis

Analysis of 3D molding

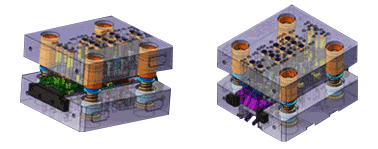

Manufacturing technology of four-cavity molds



Hinge Technology

The hinge module of sliding mobile phones is a very important part of developing a new mobile phone as it determines the finalization of the plan for the new mobile phone, therefore, it is essential to carry out development before making a decision on the design and concept.

  • Wire-rope spring
  • Spiral spring
  • Plate spring
  • Slim spring

Wire-rope spring

Spiral spring

Plate spring

Slim spring



Surface treatment technology

  • PEO
  • Anodizing
  • Chromate

1. PEO ( Plasma Electrolytic Oxidation )

  • 1) New Surface Treatment Technology for Magnesium, Aluminum, and Titanium
  • 2) Induce disruption (breakdown) of high voltage on base metal (substrate)
  • 3) The surface of the metal is strong, with low porosity and modified into the metal oxide ceramic layer with the good adhesion

PEO reaction

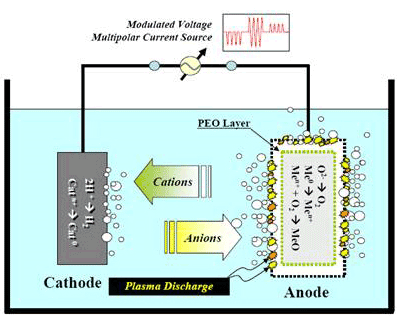

System structure

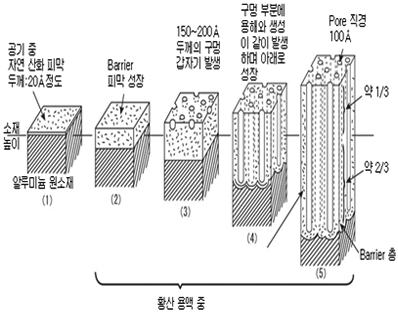

2. Anodizing

  • 1) Thick oxide film formation on aluminum surface by electrochemical method
  • 2) Improved corrosion resistance and abrasion resistance
  • 3) Aesthetic glass can be dyed in various colors

Anodizing surface



3. Chromate

  • 1) Formation of oxide film by chemical reaction between chemical solution (acid) and aluminum
  • 2) Conductive film, excellent corrosion resistance, and excellent adhesion
  • 3) Easy to use for complicated shape structures
  • 4) Mass production available

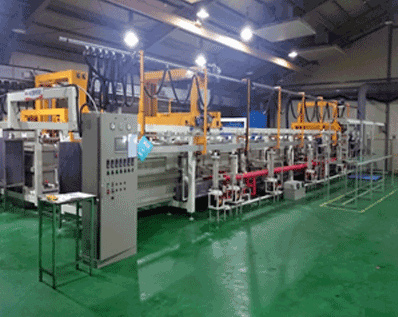

Automatic chromate line

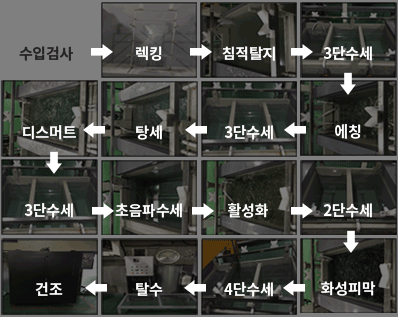

Process chart



Painting Technology

  • Powder Coating
  • Corrision Painting

1. Powder coating

1) What is powder coating?A coating method using a powdery resin in which conductor is coated with synthetic resin in powder form.
When the coated object is pretreated and powder having a particle size and specific gravity suitable for electrostatic painting is applied, it passes through the drying furnace at a temperature of 180 °C for 20 minutes, the powder gradually melts into a liquid, becomes hardened, and is cured onto the coated object.

  • The coating thickness is about 60 microns
  • Actual organic solvent or water is a useless ingredient for film formation, therefore, remove such ingredient and use only resins

2) Electrostatic Powder Coating MethodA method of spraying a negatively charged powder under high voltage onto a grounded substrate to electrically adhere it to the coated substrate, followed by heating and dissolving.
Powder coatings, once attached, generally do not fall off from the substrate during setting because they are difficult to be discharged due to their high electrical resistance and when the powder coatings are attached to a certain thickness, they strongly repel each other and do not adhere with a thickness greater than that (electrostatic equilibrium phenomenon). This phenomenon makes the film thickness of the coating uniform.

2. Corrision Painting

1) What is a corrision painting?A coating method for forming a coating film using a varnish by covering drawings of ingredients for protection of ingredients, aesthetics, etc

  • Particularly excellent weatherability, excellent gloss and gloss retention, excellent color and color retention
  • Good coatability
  • Excellent mechanical properties, chemical resistance, and adhesion
  • The stoving temperature is generally higher than 150 °C compared to amino alkyd resins
